Toyota AB60E, AB60F, Deep PML Transmission Pan

Regular price USD $375.25
Regular price USD $395.00 Sale price USD $375.25
Sale Sold out
Share

Description

Volume: 3.25 quarts over stock

Dimensions: Click below for dimensions


Number of Bolts: 12

Pricing: Will include the transmission pan, PML cork gasket, new mounting bolts and washers, fill plug and magnetic drain plug.

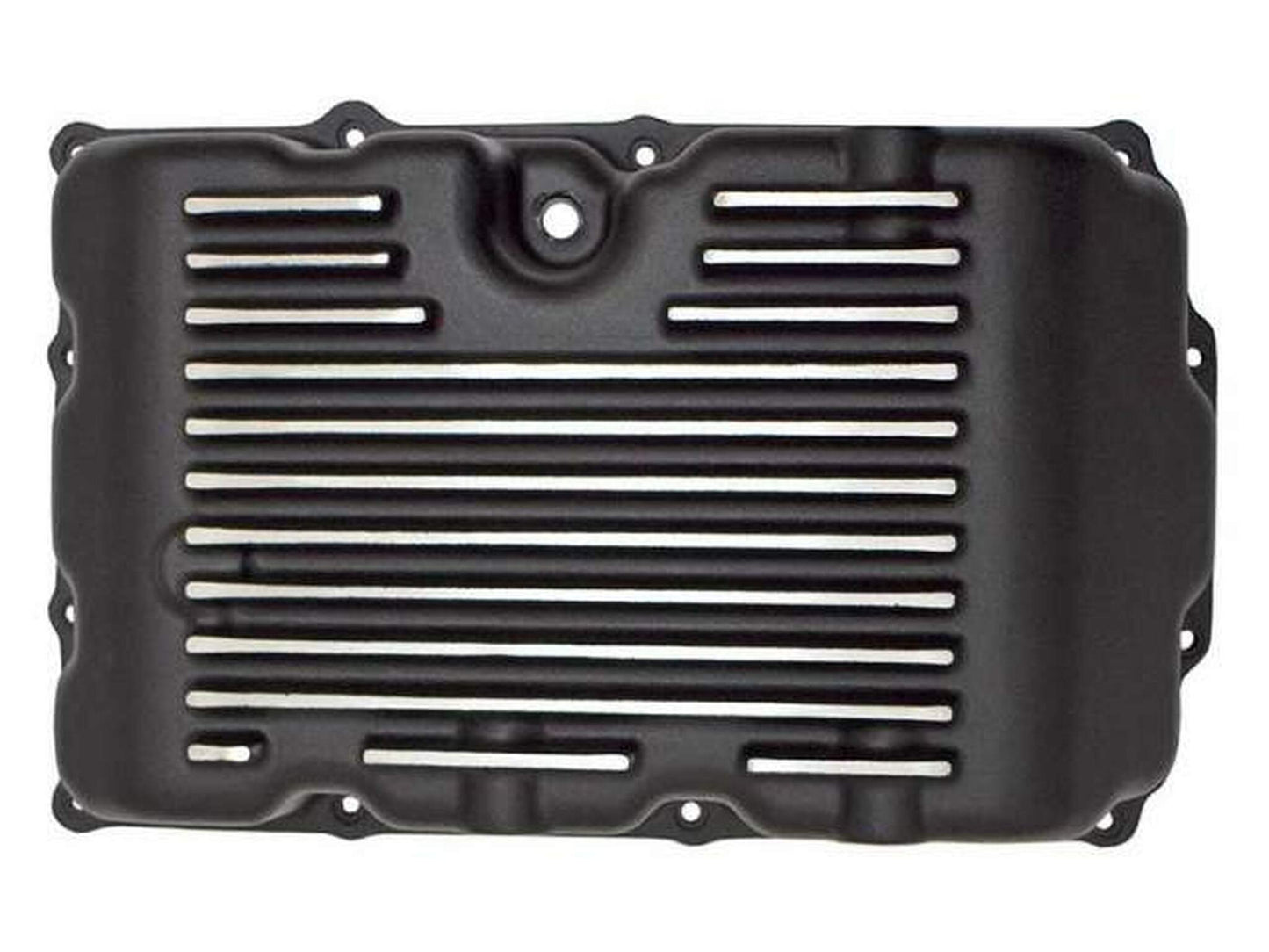

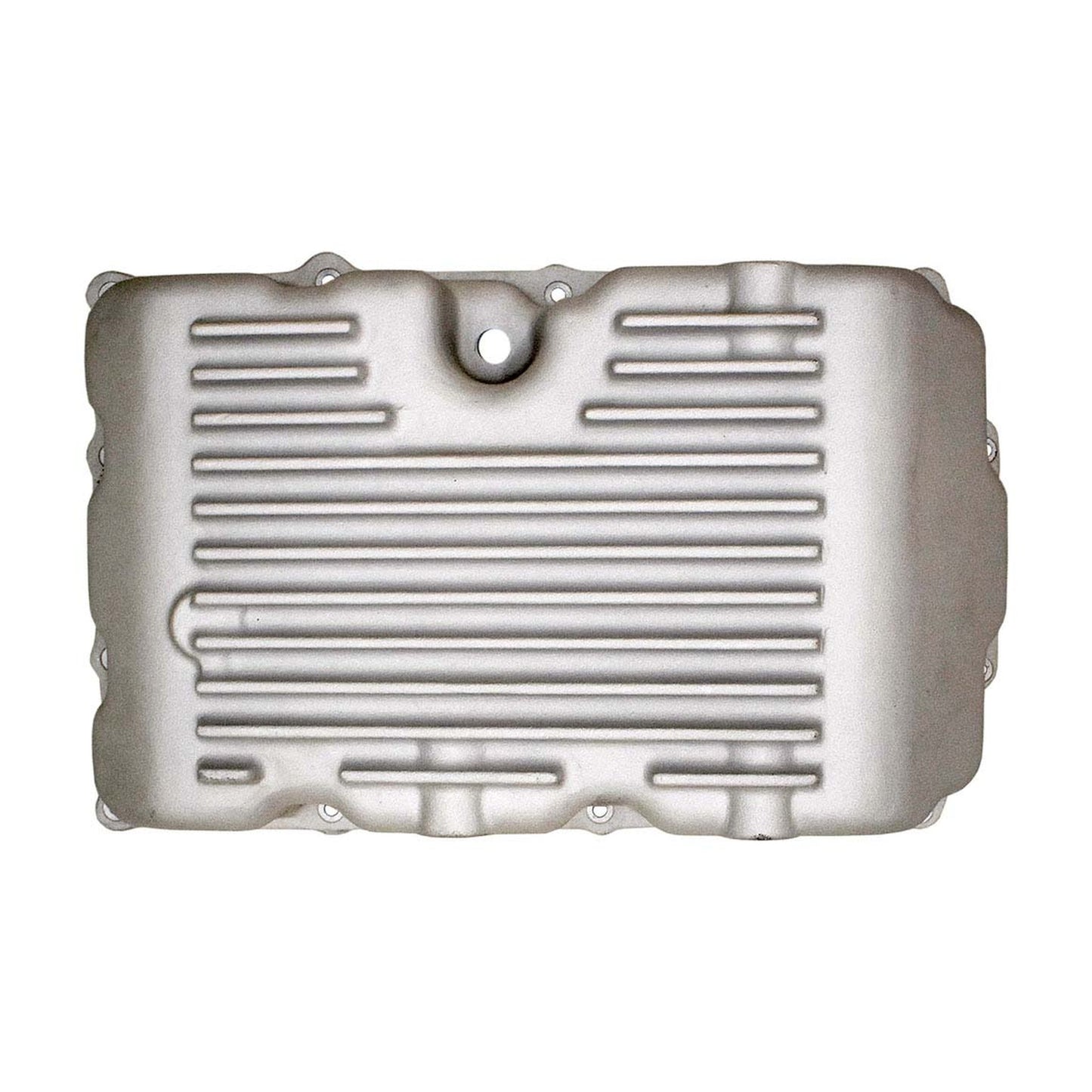

This new PML transmission pan for AB60E, AB60F features heavy duty construction, extra capacity, drain, and cooling fins. The AB60E, AB60F transmission may be found in Toyota and Lexus trucks and SUVs such as:

  • Toyota Landcruiser 5.7L, 2009 to 2015 — check for skid plate
  • Toyota Landcruiser Series 200 and Series 79 (Australia) — check for skid plate
  • Toyota Sequoia 5.7L, 2008 to 2015
  • Toyota Tundra 5.7L, 2007 to 2015
  • Lexus LX570 5.7, 2008 to 2015

Always check your vehicle configuration and clearance before ordering. Does it have an AB60 transmission and does it have space for a larger afterpart pan?

Vehicle with skid plates may not have space for this extra capacity transmission oil pan with the skid plate installed. A spacer for the skid plate may be possible.

This PML transmission pan will not work with the stock gasket. A gasket is included with the pan.

Benefits

  • Extra fluid capacity
  • Cooling fins to dissipate heat
  • Thick flange for a secure seal
  • Interior baffles to reduce sloshing
  • Shape clears frame cross members
  • Does not hang below frame for ground clearance
  • Side drain hole
  • Comes with new mounting bolts and magnetic drain plug

Transmission Filter and Gasket

This PML transmission pan works with the stock filter, available from a Toyota dealer or an auto parts store.

This PML transmission pan will not work with the stock gasket.

PML includes a cork gasket, of our own design, for this transmission pan. Some folks prefer to use silicon "gasket maker" which also will make a great seal. The factory stock gasket will not work with the PML AB60 transmission pan. Additional cork gaskets are available for purchase from PML.

The PML gasket will not work with the stock pan.

Baffles on the inside of the pan help reduce sloshing and aid in heat dissipation. They also direct the flow of the fluid toward the pick up on the filter.

Drain, Level Check and Optional Temperature Sending Unit Locations

PML located the drain plug on the left side of the pan. This is the driver side on US vehicles. On the side of the pan, the drain plug is less likely to get damaged.

The level check hole is on the right (passenger) side, in the same location as the stock hole. This hole can also be used to fill.

Additional Info

SKU:PML-11151-CAST
