Chrysler/Mercedes NAG1, 722.6, W5A580, WA580, W5A380, W5J400, Stock Capacity PML Transmission Pan

Regular price USD $346.75
Regular price USD $365.00 Sale price USD $346.75
Sale Sold out
Share

Description

Volume: stock capacity to 1/2 quarts over stock

Dimensions: Click below for dimensions. Stock pan is about 1.6 inches and this Pan is about 2.2 inches tall. Although this pan is stock capacity, the thick walls and fins make it taller.


Number of Bolts: 6

Applications for This PML Transmission Pan

PML designed this 722.6/NAG1 (W5A580, WA580, W5A380, W5J400) pan for:

  • Jeep Wrangler 2012 to 2016
  • Cars, trucks and SUVs that want a heavy duty NAG1, 722.6 pan with cooling fins and have little clearance

Always check your vehicle before ordering to verify set up and clearance.

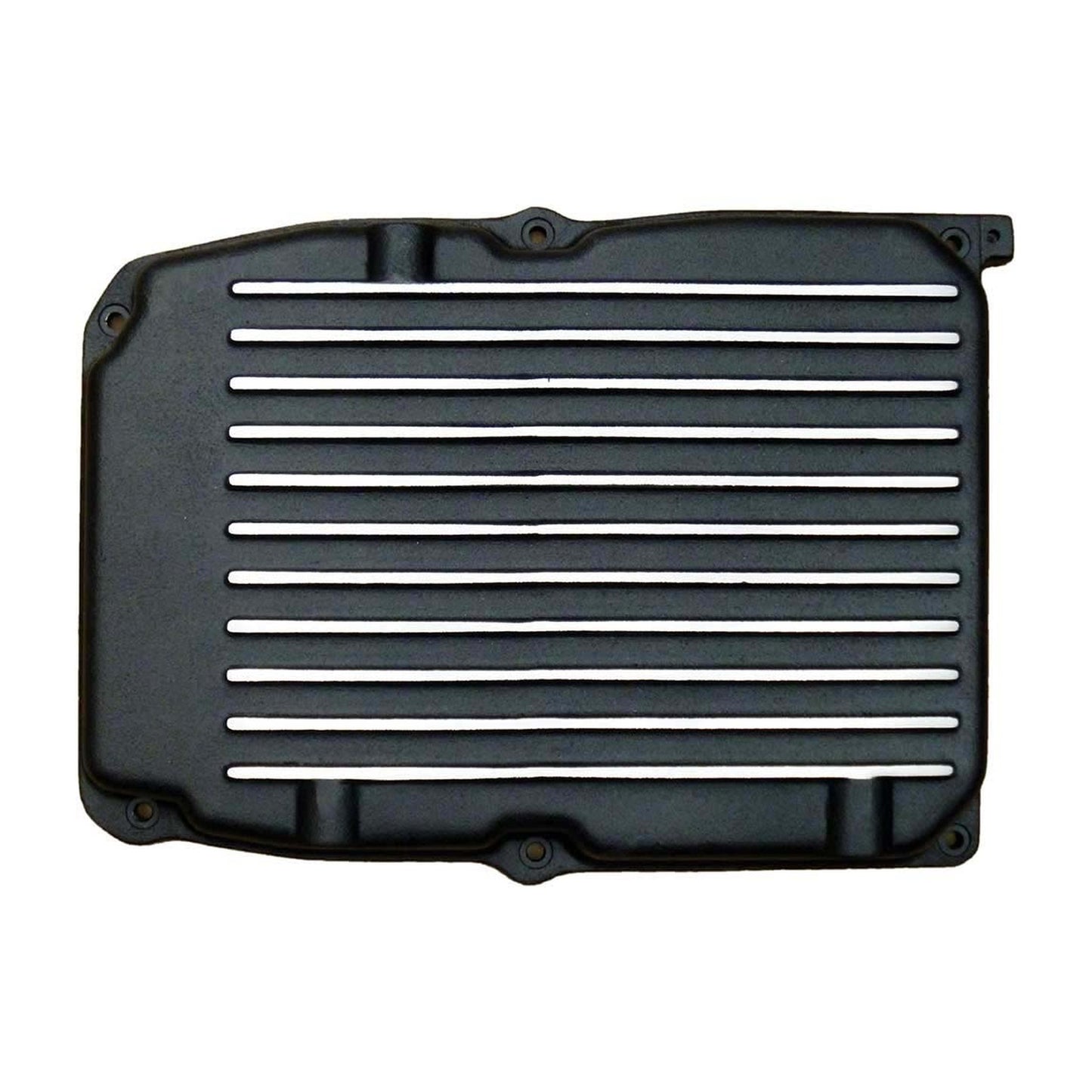

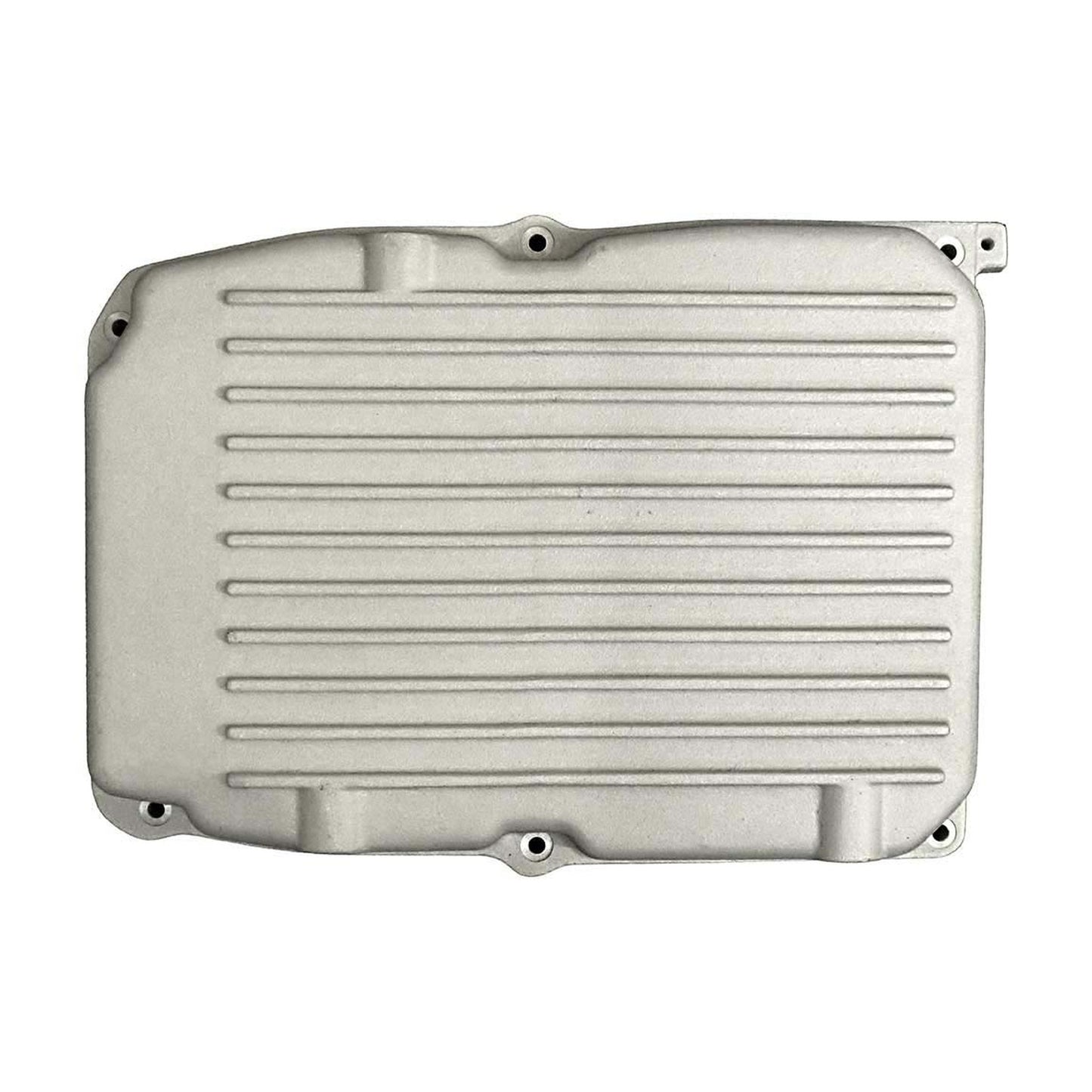

This pan is available in three finishes.

Benefits

PML designed this 722.6/NAG1 transmission pan for:

  • Cooling — fins and aluminum construction
  • Clearance — only 5/8 inch deeper than stock pan
  • Drain plug — on the side for safety
  • Secure seal — machined flat flange, no more retaining clips and formed gasket
  • Strength — high quality, thick walls

PML makes three pans for the NAG1/722.6 transmission. Need help figuring out which pan you need? Check out this video or see our NAG1/722.6 Transmission Guide for help.

Gasket


A PML cork and rubber gasket is included (normally $18) for those who prefer a gasket over RTV.

PML's pan is not compatible with the stock gasket. PML's gasket is not compatible with the stock pan.

In this video, learn how this PML pan seals to the transmission housing:

Filter for PML 722.6/NAG1 Transmission Pan

PML design this pan to work with the stock filter. The Mercedes part number on the filter PML used during design and development is 140 277 00 95. No tube or filter extension are needed.

Dipstick and Transmission Fluid Level

The fluid level should be at the same level in the stock pan and a PML pan. On many vehicles, the dipstick uses the bottom of the pan as a stop. The bottom of the PML pan is at the same location as the bottom of the stock pan.

Many vehicles with these transmissions do not have a dipstick and the correct fluid level is based on temperature. The cap for the transmission fluid fill and level check can say "See Dealer". The installer of a replacement pan needs to have the correct tools to replace the transmission fluid according to the factory instructions.

PML Transmission Pan Features:

  • Sand-cast aluminum with raised fins
  • 3/16-inch thick wall construction to add strength to the transmission case
  • 3/8-inch thick gasket flange will not bend when bolts are tightened
  • Machined gasket surface for a secure seal
  • Boss cast into pan can be machined for a temperature sensor
  • Drain hole and magnetic drain plug for easier, less messy maintenance

All PML transmission pans ship with new mounting bolts and a magnetic drain plug.

Additional Info

SKU:PML-11132-CAST
